BD545 RC Reverse Circulation Hammer
Compatibility: RE545, MR116, SR745, AD638
Black Diamond Drilling offers a complete range of reverse circulation hammers along with fully integrated R.C. Bits and Shrouds that have been designed to provide a world-class sampling system. Precision engineering enables our R.C. Hammers to excel in maintaining an efficient and smooth flow of drill cuttings to the surface, ensuring cleaner, more accurate samples. This leads to more reliable data for exploration and better overall hole quality.
| Item | Diameter Ø | |
| mm | inch | |
| BD545 Hammer | 117.5 | 4 5/8 |
| Bit | 124 - 140 | 4 7/8 - 5 1/2 |
| Suits medium to hard ground conditions | ||

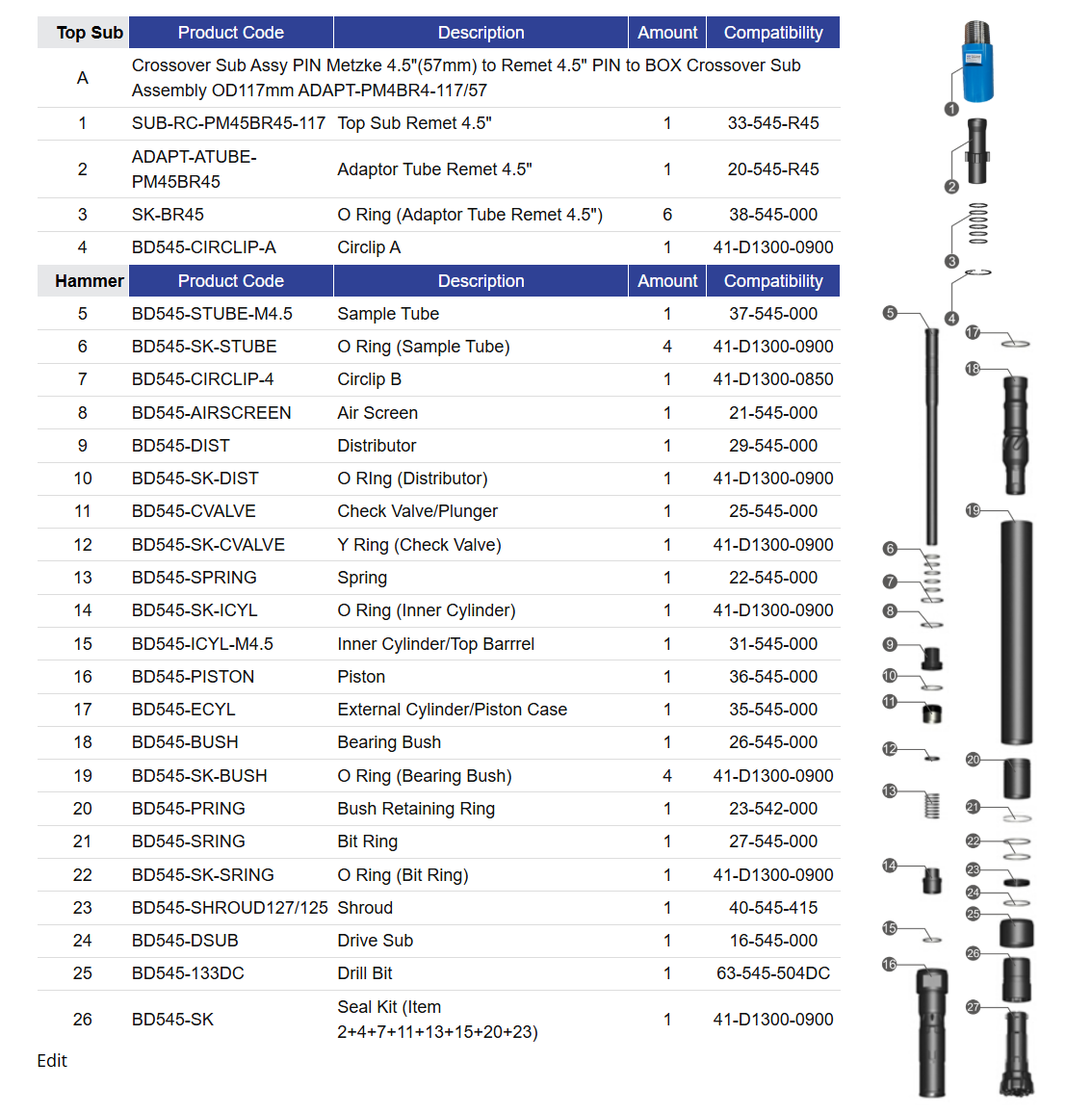

BD545 RC Reverse Circulation Hammer Parts List
| Top Sub | Product Code | Description | Amount | Compatibility |
| A | Crossover Sub Assy PIN Metzke 4.5"(57mm) to Remet 4.5" PIN to BOX Crossover Sub Assembly OD117mm ADAPT-PM4BR4-117/57 | |||
| 1 | SUB-RC-PM45BR45-117 | Top Sub Remet 4.5" | 1 | 33-545-R45 |
| 2 | ADAPT-ATUBE-PM45BR45 | Adaptor Tube Remet 4.5" | 1 | 20-545-R45 |
| 3 | SK-BR45 | O Ring (Adaptor Tube Remet 4.5") x6 | 6 | 38-545-000 |
| 4 | BD545-CIRCLIP-A | Circlip A | 1 | 41-D1300-0900 |
| Hammer | Product Code | Description | Amount | Compatibility |
| 5 | BD545-STUBE-M4.5 | Sample Tube | 1 | 37-545-000 |
| 6 | BD545-SK-STUBE | O Ring (Sample Tube) x4 | 4 | 41-D1300-0900 |
| 7 | BD545-CIRCLIP-4 | Circlip B | 1 | 41-D1300-0850 |
| 8 | BD545-AIRSCREEN | Air Screen | 1 | 21-545-000 |
| 9 | BD545-DIST | Distributor | 1 | 29-545-000 |
| 10 | BD545-SK-DIST | O RIng (Distributor) | 1 | 41-D1300-0900 |
| 11 | BD545-CVALVE | Check Valve/Plunger | 1 | 25-545-000 |
| 12 | BD545-SK-CVALVE | Y Ring (Check Valve) | 1 | 41-D1300-0900 |
| 13 | BD545-SPRING | Spring | 1 | 22-545-000 |
| 14 | BD545-SK-ICYL | O Ring (Inner Cylinder) | 1 | 41-D1300-0900 |
| 15 | BD545-ICYL-M4.5 | Inner Cylinder/Top Barrrel | 1 | 31-545-000 |
| 16 | BD545-PISTON | Piston | 1 | 36-545-000 |
| 17 | BD545-ECYL | External Cylinder/Piston Case | 1 | 35-545-000 |
| 18 | BD545-BUSH | Bearing Bush | 1 | 26-545-000 |
| 19 | BD545-SK-BUSH | O Ring (Bearing Bush) x4 | 4 | 41-D1300-0900 |
| 20 | BD545-PRING | Bush Retaining Ring | 1 | 23-542-000 |
| 21 | BD545-SRING | Bit Ring | 1 | 27-545-000 |
| 22 | BD545-SK-SRING | O Ring (Bit Ring) | 1 | 41-D1300-0900 |
| 23 | BD545-SHROUD127/125 | Shroud | 1 | 40-545-415 |
| 24 | BD545-DSUB | Drive Sub | 1 | 16-545-000 |
| 25 | BD545-133DC | Drill Bit | 1 | 63-545-504DC |
| 26 | BD545-SK | Seal Kit (Item 2+4+7+11+13+15+20+23) | 1 | 41-D1300-0900 |
Bit Selection Table
Shroud Selection Table
Bit Selection Table
| Bit Product Code | Diameter | Compatibility | |
| Metric | Imperial | ||
| BD545-124DC-TP | 124mm | 4 7/8" | 63-545-414DC |
| BD545-127DC-TPD | 127mm | 5" | 63-545-500DC |
| BD545-133DC-TPD | 133mm | 5 1/4" | 63-545-504DC |
| BD545-136DC-TPD | 136mm | 5 3/8" | 63-545-506CF |
Shroud Selection Table
| Shroud Product Code | Diameter | Compatibility | |
| Metric | Imperial | ||
| BD545-SHROUD-124/122 | 124mm | 4 7/8" | 40-545-413 |
| BD545-SHROUD-127/125-DB | 127mm | 5" | 40-545-415 |
| BD545-SHROUD-133/131-DB | 133mm | 5 1/4" | 40-545-503 |
| BD545-SHROUD-136/134-DB | 136mm | 5 11/32" | 40-545-505 |
| BD545-SHROUD-138/136-DB | 138mm | 5 7/16" | 40-545-507 |
| BD545-SHROUD-140/138-DB | 140mm | 5 1/2" | 40-545-508 |

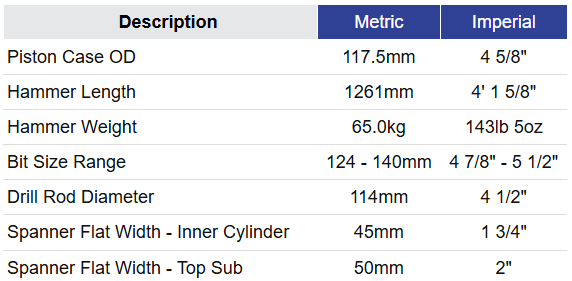

General Specifications
Air Consumption
General Specifications
| Description | Metric | Imperial |
| Piston Case OD | 117.5mm | 4 5/8" |
| Hammer Length | 1261mm | 4' 1 5/8" |
| Hammer Weight | 65.0kg | 143lb 5oz |
| Bit Size Range | 124 - 140mm | 4 7/8" - 5 1/2" |
| Drill Rod Diameter | 114mm | 4 1/2" |
| Spanner Flat Width - Inner Cylinder | 45mm | 1 3/4" |
| Spanner Flat Width - Top Sub | 50mm | 2" |
Air Consumption
| Pressure | Consumption | ||
| psi | bar | cfm | m3/min |
| 400 | 27.6 | 850 | 24.0 |
| 450 | 31.1 | 925 | 25.1 |
| 500 | 34.5 | 1000 | 28.3 |
| 550 | 38.1 | 1050 | 29.8 |
| 600 | 41.4 | 1125 | 32.0 |
